IZT R3200 Digital Wideband Receiver with Laptop

IZT R3000 Receiver Family

Digital Wideband Receiver

The IZT R3000 family is particularly suitable for signal search and analysis, spectrum monitoring in line with ITU recommendations and communication intelligence. It allows to analyze and demodulate modern digital wideband signals as well as to track or intercept frequency agile systems over a wide range of bandwidths.

The exceptional performance of the IZT R3000 receiver family with outstanding receive characteristics and a 24 MHz realtime bandwidth allow for handling of wideband signals while exceeding the performance of traditional narrowband receivers.

Key features

  • Frequency range: 9 kHz – 3 GHz (6 GHz / 18 GHz)
  • Real-time bandwidth up to 24 MHz
  • Multichannel operation: up to four independent channels within 24 MHz bandwidth
  • IF Filter bandwidth: 6.25 kHz – 24 MHz
  • 1 Hz tuning resolution
  • Digital IF output to Gigabit LAN
  • LAN data rate up to 115 MByte/sec
  • Output data format: I/Q complex baseband, complex FFT and PSD
  • Optional analog IF output
  • Fully remote controllable
  • External synchronization enables direction-finder systems
  • TDOA location finding platform
  • ITU-compliant measurements
  • Fast scanning modes
  • Analog demodulation

IZT R3000

The “original” IZT R3000 receiver is the most famous model of the IZT R3000 receiver family. It is mainly designed for installations where the system’s components are installed in a 19 inch rack environment. With only 1 RU height multiple receivers can be stacked.

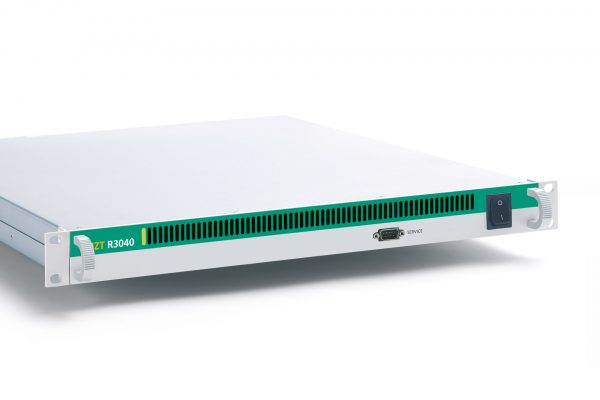

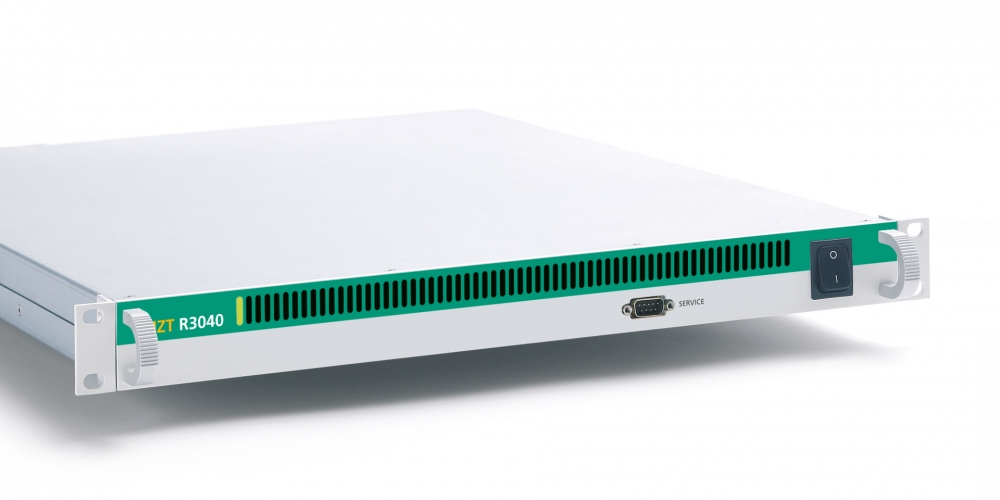

IZT R3000 Digital Wideband Receiver


IZT R3200

The IZT R3200 offers the same performance as the IZT R3000 for applications requiring reduced mechanical depth due to its 2 RU, 19 inch design.

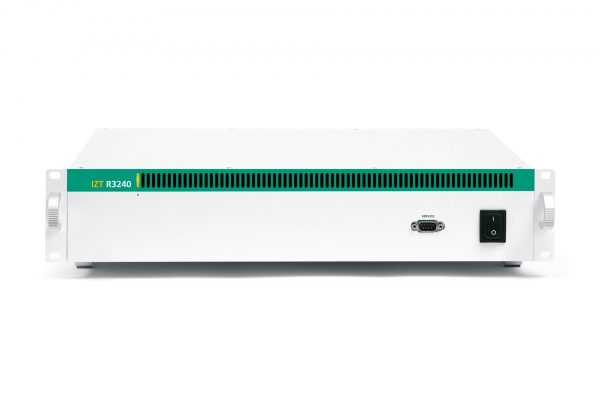

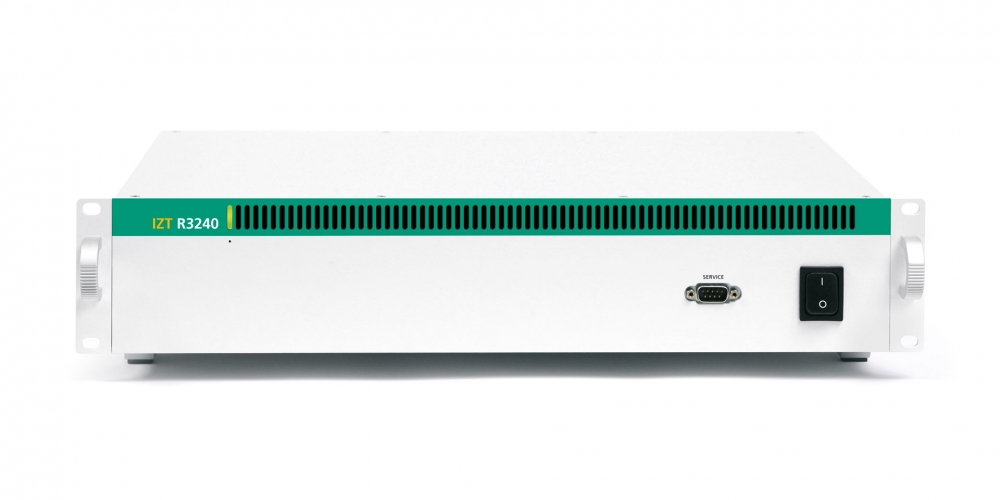

IZT R3200 Digital Wideband Receiver front


IZT R3410 / IZT R3411

IZT R3410 Ruggedized Receiver

The compact variant of the sucessfull R3000 series combines a limited weight of under 7 kg with a fanless design suited for harsh environments while maintaining the excellent HF performance and a real-time bandwidth of 24 MHz.

The IZT R3000 family is particularly suitable for signal search and analysis, spectrum monitoring in line with ITU recommendations and communication intelligence.

It allows to analyze and demodulate modern digital wideband signals as well as to track or intercept frequency agile systems over a wide range of bandwidths.

The exceptional performance with outstanding receive characteristics and a 24 MHz realtime bandwidth allow for handling of wideband signals while exceeding the performance of traditional narrowband receivers.

IZT R3411 Ruggedized Receiver

  • Weight and size reduction of 30% in comparison to the IZT R3410
  • Ideal for mobile and man-portable systems
  • Available either for the frequency range 9 kHz-30 MHz or for 20 MHz-3 GHz

IZT R3410 Compact Wideband Receiver and R3411 ruggedized version


The IZT R3000 Receiver Family at a Glance

IZT R3000 Digital Wideband Receiver
IZT R3200 Digital Wideband Receiver with Laptop
IZT R3200 Digital Wideband Receiver front
IZT R3200 Digital Wideband Receiver circuit board
IZT R3200 Digital Wideband Receiver back
IZT R3410 Compact Wideband Receiver and R3411 ruggedized version
IZT R3410 Compact Wideband Receiver front
IZT R3410 Compact Wideband Receiver back
IZT R3411 Ruggedized Compact Wideband Receiver front
