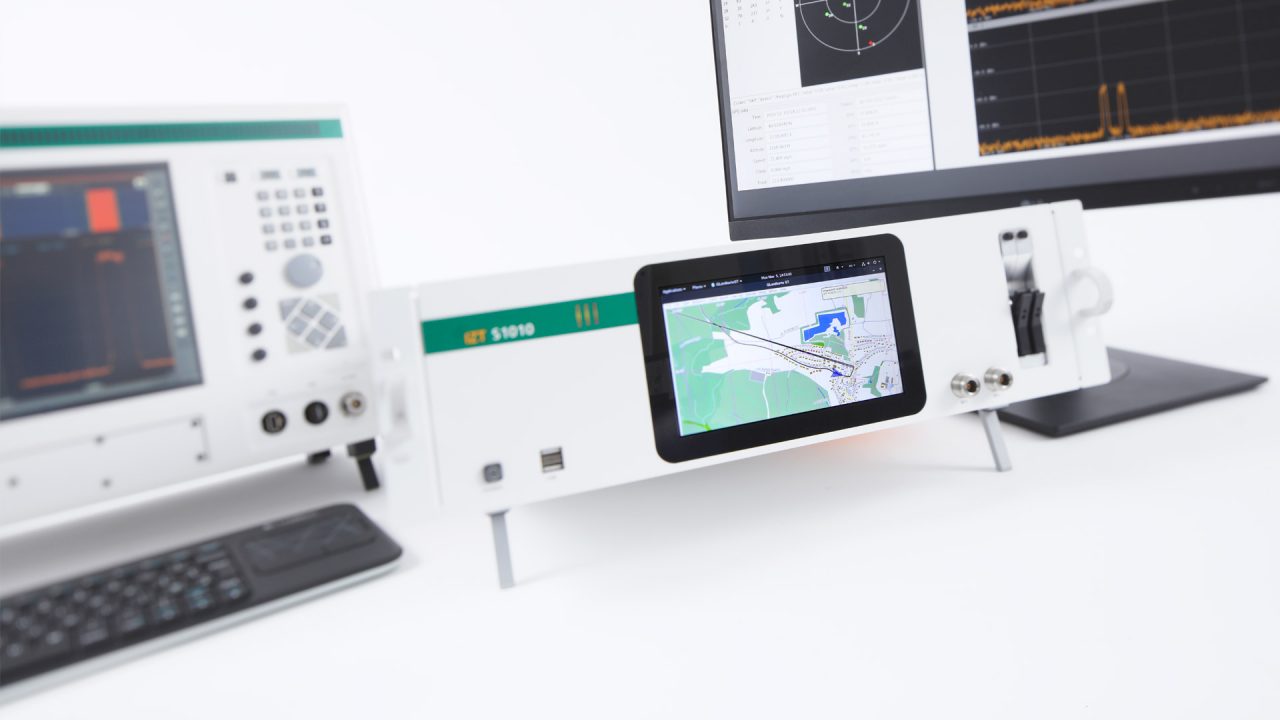

IZT RecPlay system IZT S1010 IZT R3301

IZT RecPlay

RF Recording and Replay System

IZT RecPlay is a full featured RF recording and replay system using well established and reliable IZT components. The system is able to receive, record and replay up to 20.5 MHz bandwidth in a frequency range from 9 kHz to 3 GHz.

The recording side of the RecPlay System uses the RF receiving and signal processing capabilities of the IZT R3000 Wideband Receiver Series integrated into the portable Monitoring Receiver and RF Recorder IZT R3301. Several receivers can be synchronized for antenna diversity. IZT software allows for easy storage and data/signal processing.

Recorded signals can be replayed using IZT S1000 Multi-Channel Signal Generator with system concept and hardware based on the IZT S5000 COMINT Stimulator.

IZT RecPlay RF Recording and Replay System with S1000 and R3301
IZT RecPlay RF Recording and Replay System Diversity Setup with S1000 and two R3301



PDF

IZT RecPlay RF Recording and Replay SystemIZT Product Overview
